Product details description

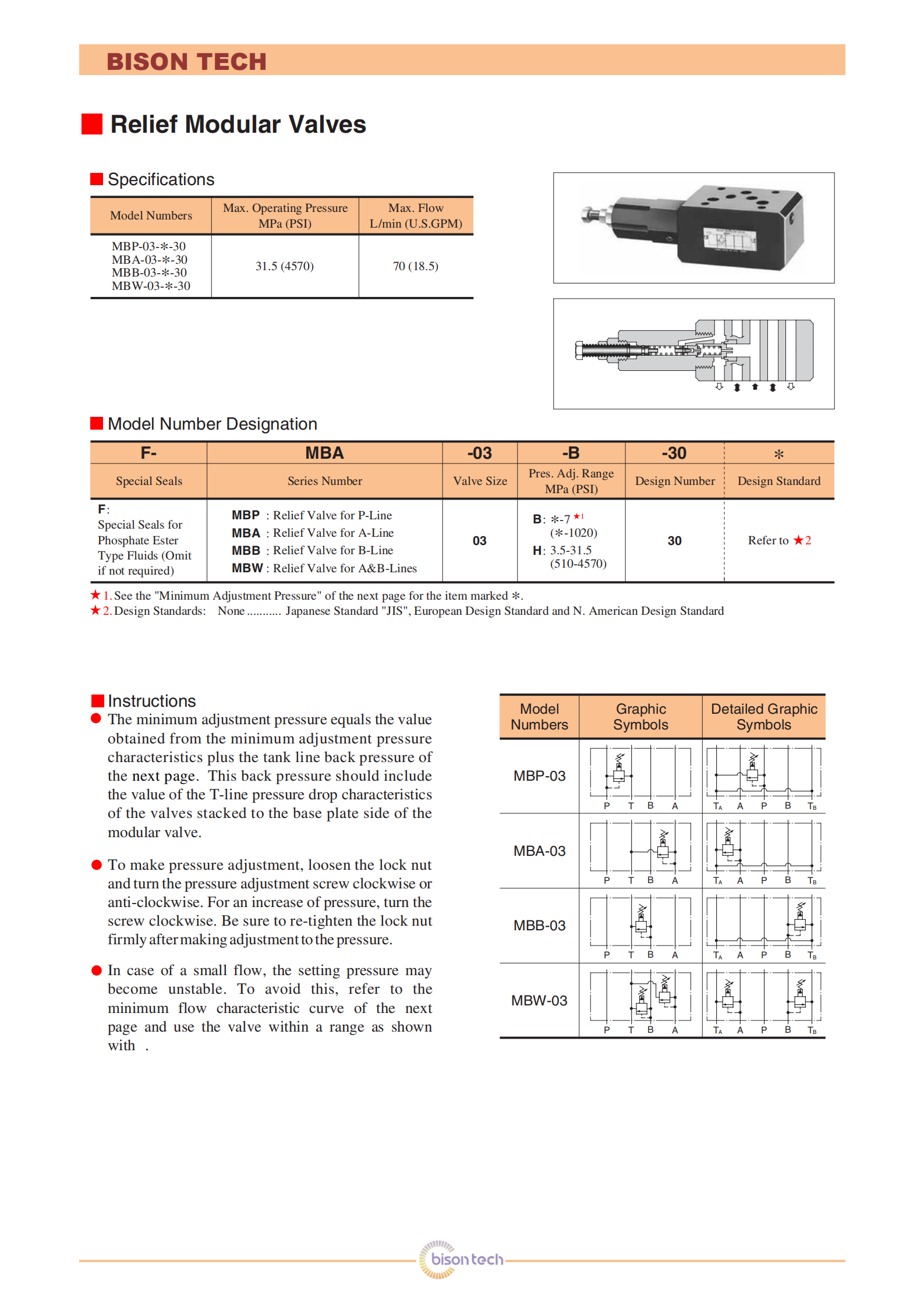

YUKEN Series 3/8 Modular Valves Relief Modular Valves MBP-03 MBA-03 MBB-03 MBW-03-B/H-30

The minimum adjustment pressure equals the value

obtained from the minimum adjustment pressure

characteristics plus the tank line back pressure of

the next page. This back pressure should include

the value of the T-line pressure drop characteristics

of the valves stacked to the base plate side of the

modular valve.

To make pressure adjustment, loosen the lock nut

and turn the pressure adjustment screw clockwise or

anti-clockwise. For an increase of pressure, turn the

screw clockwise. Be sure to re-tighten the lock nut

firmly after making adjustment to the pressure.

In case of a small flow, the setting pressure may

become unstable. To avoid this, refer to the

minimum flow characteristic curve of the next

page and use the valve within a range as shown

with.
