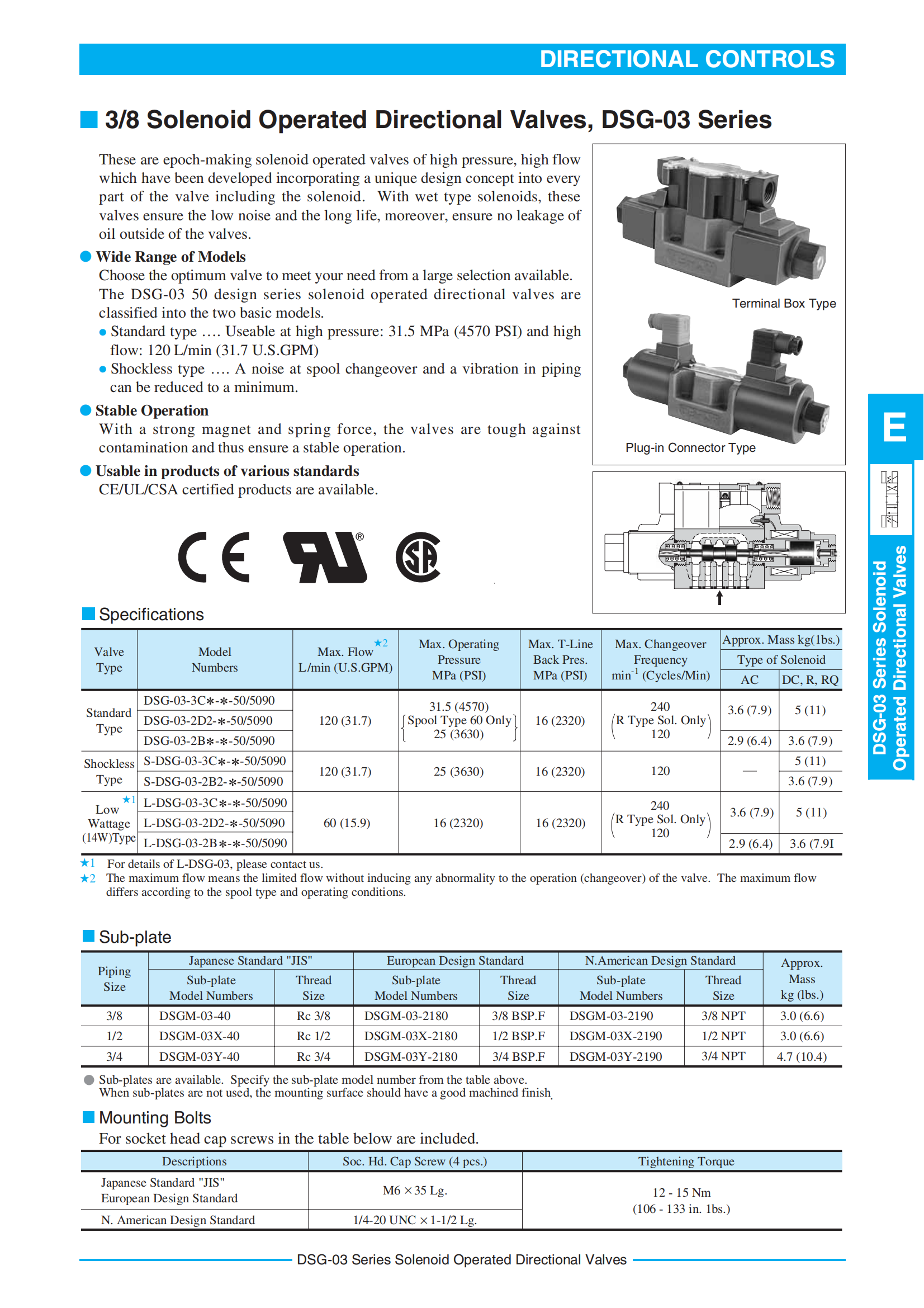

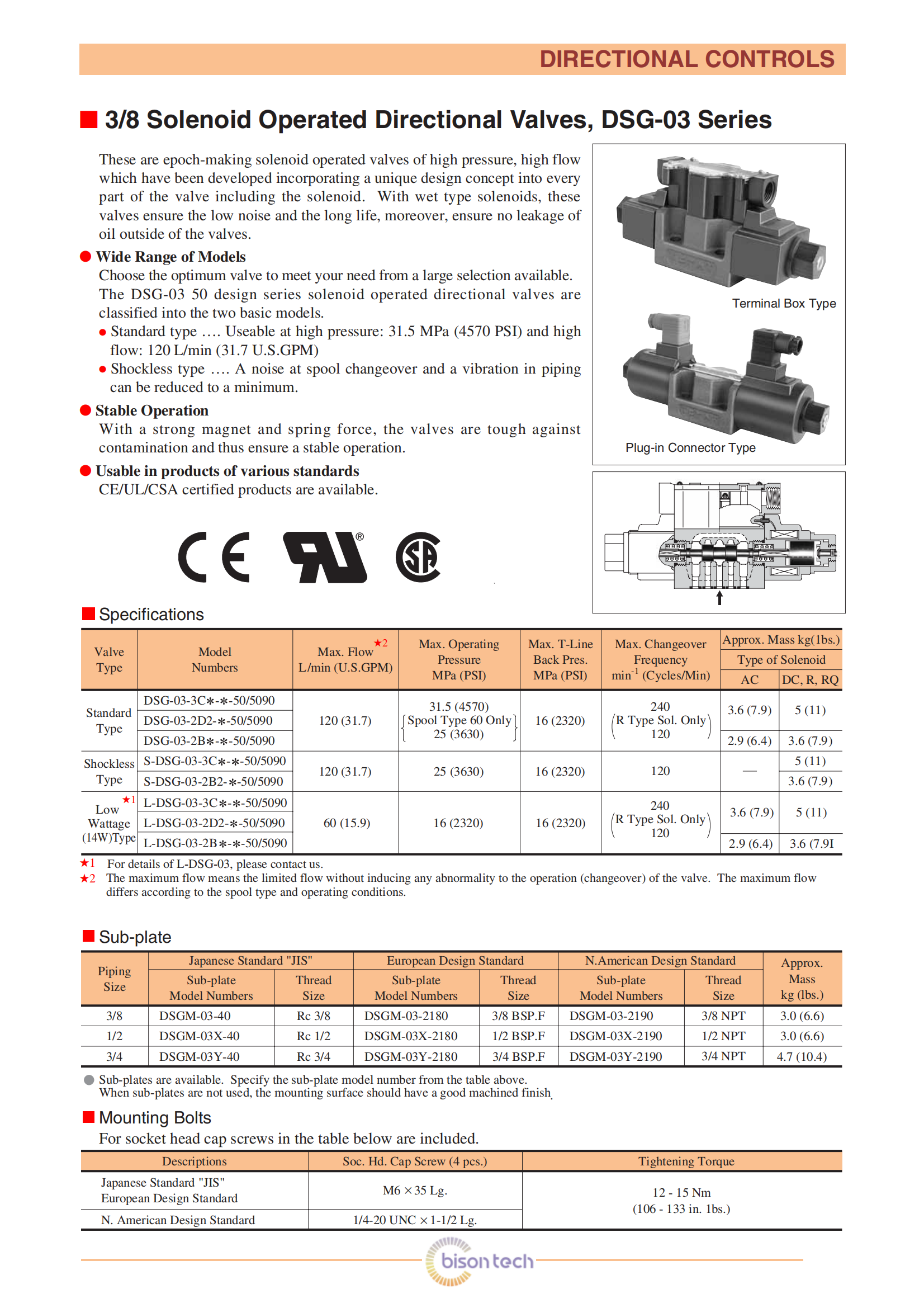

YUKEN DSG-03 Series 3/8 Solenoid Operated Directional Valves DSG-03-2B DSG-03-3C

These are epoch-making solenoid operated valves of high pressure, high flow

which have been developed incorporating a unique design concept into every

part of the valve including the solenoid. With wet type solenoids, these

valves ensure the low noise and the long life, moreover, ensure no leakage of

oil outside of the valves.

● Wide Range of Models

Choose the optimum valve to meet your need from a large selection available.

The DSG-03 50 design series solenoid operated directional valves are

classified into the two basic models.

● Standard type …. Useable at high pressure: 31.5 MPa (4570 PSI) and high

flow: 120 L/min (31.7 U.S.GPM)

● Shockless type …. A noise at spool changeover and a vibration in piping

can be reduced to a minimum.

● Stable Operation

With a strong magnet and spring force, the valves are tough against

contamination and thus ensure a stable operation.

● Usable in products of various standards

CE/UL/CSA certified products are available.
