Product details description

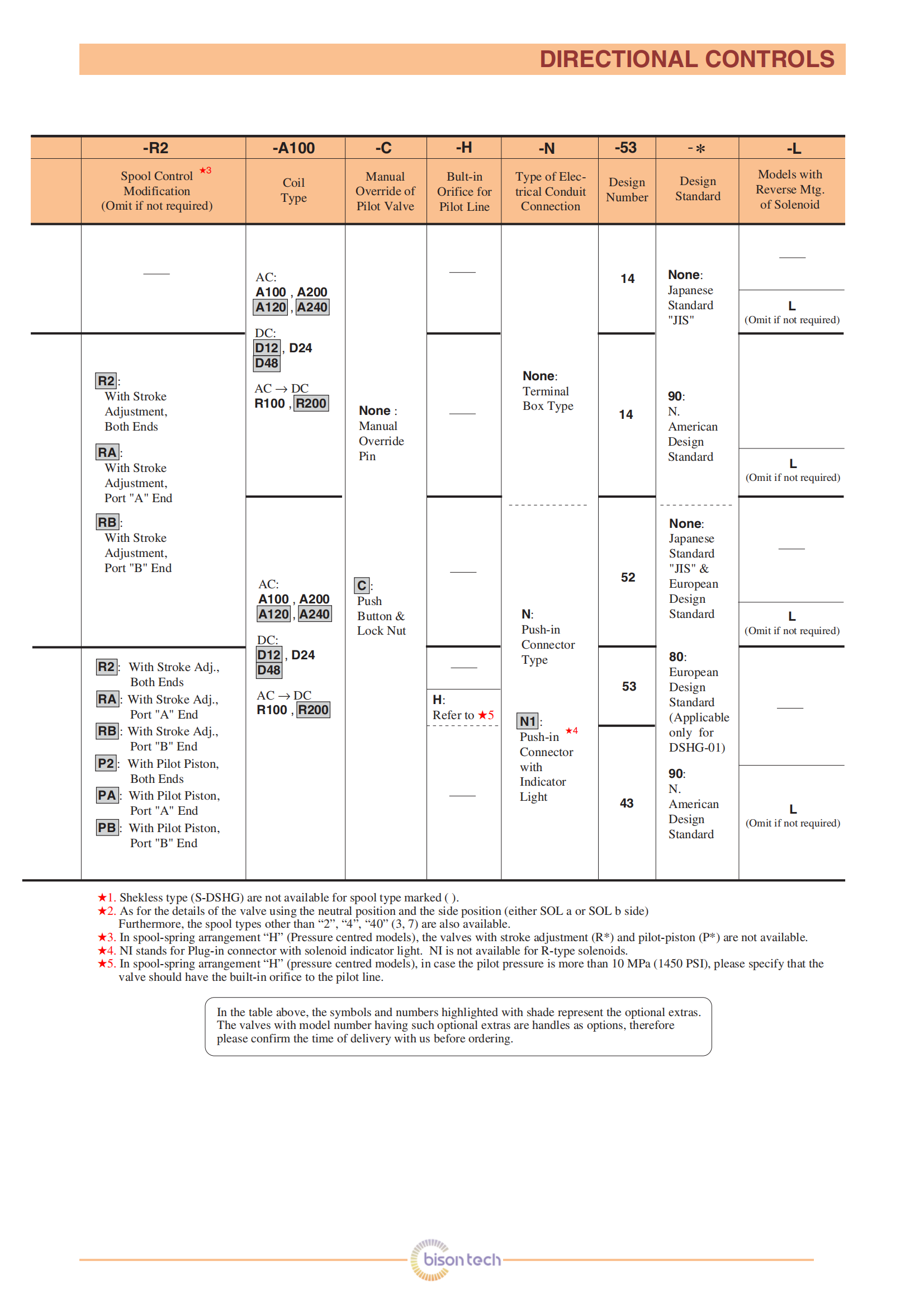

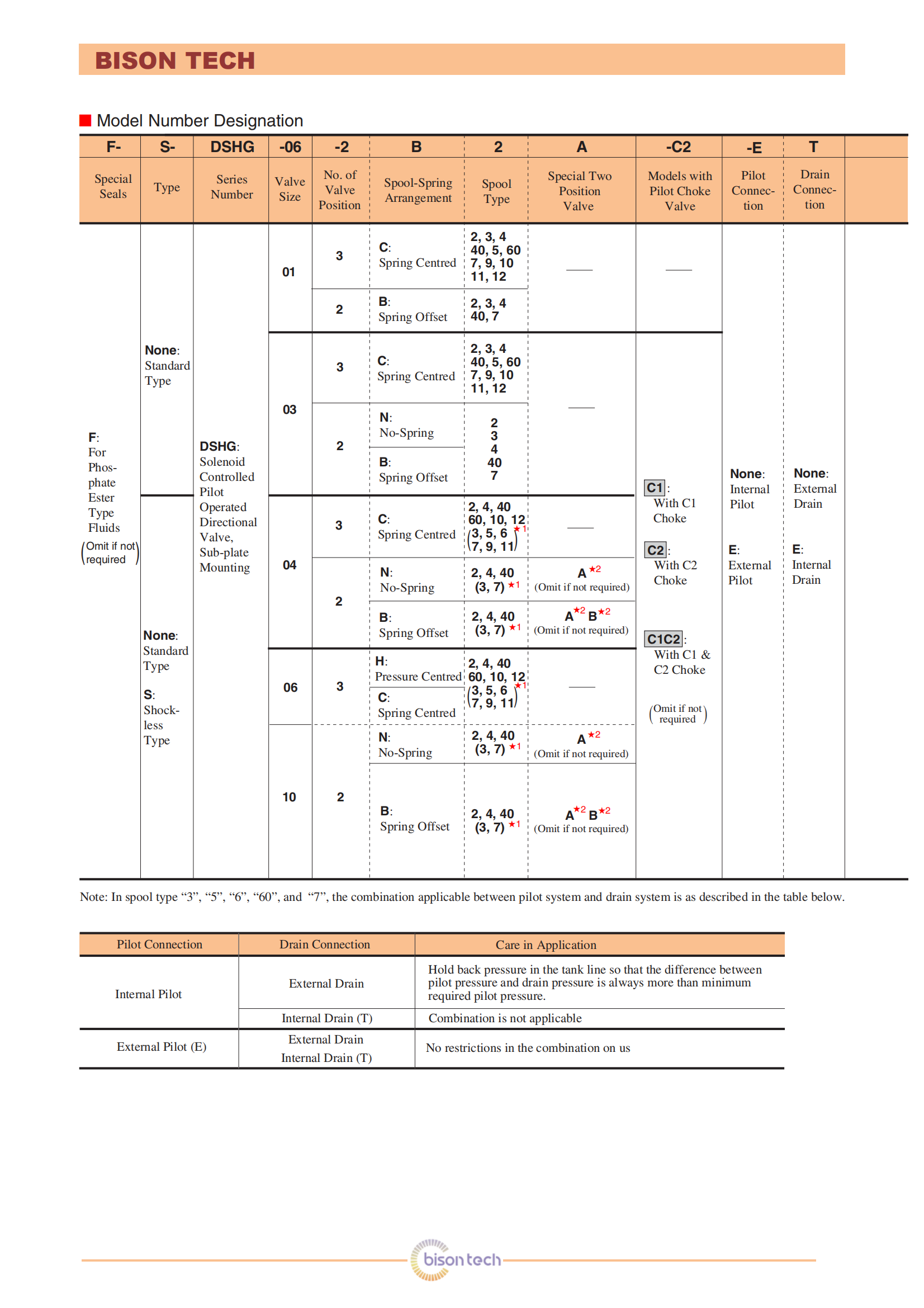

YUKEN Series Solenoid Controlled Pilot Operated Directional Valves DSHG-03 DSHG-04 DSHG-06 DSHG-10

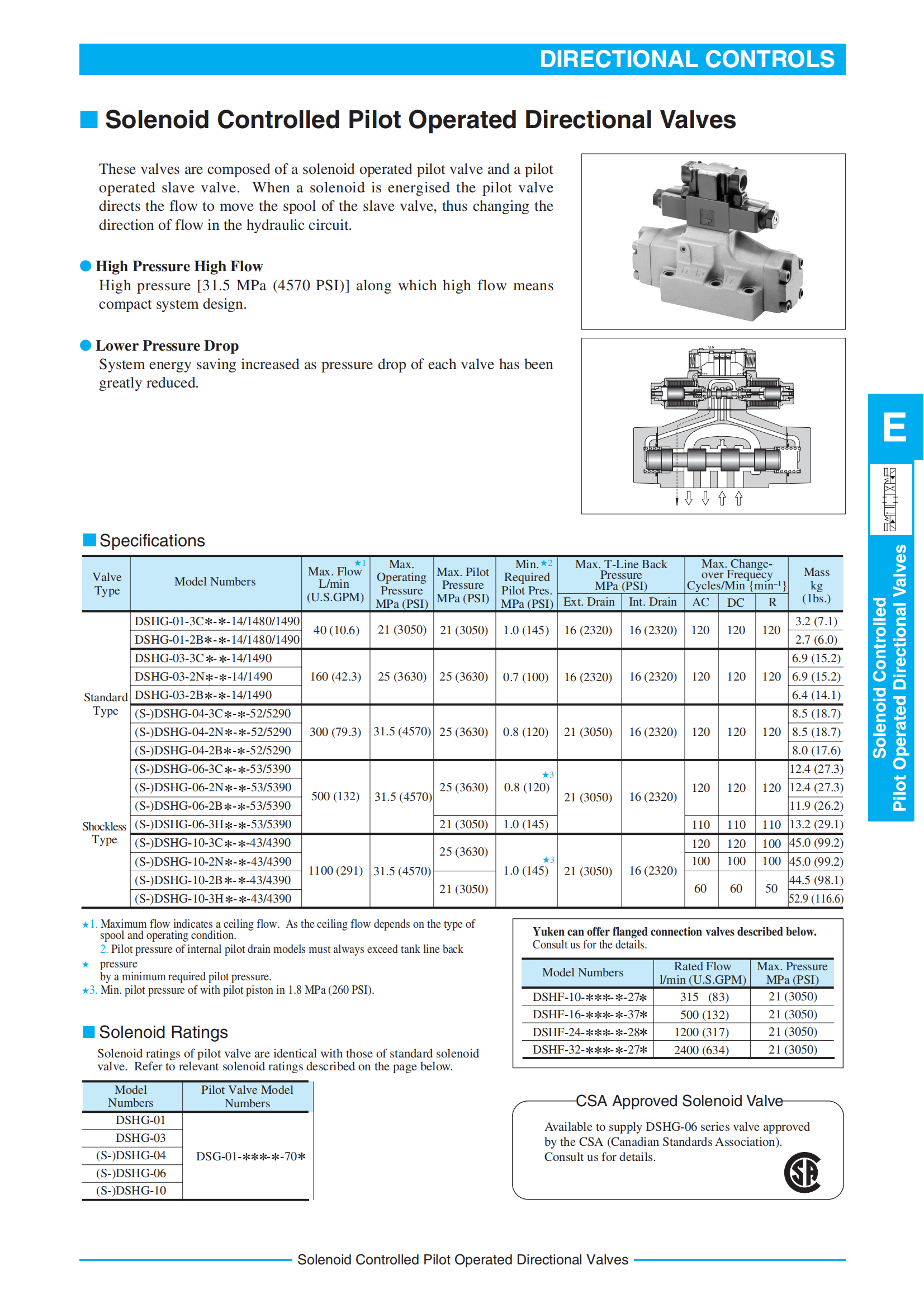

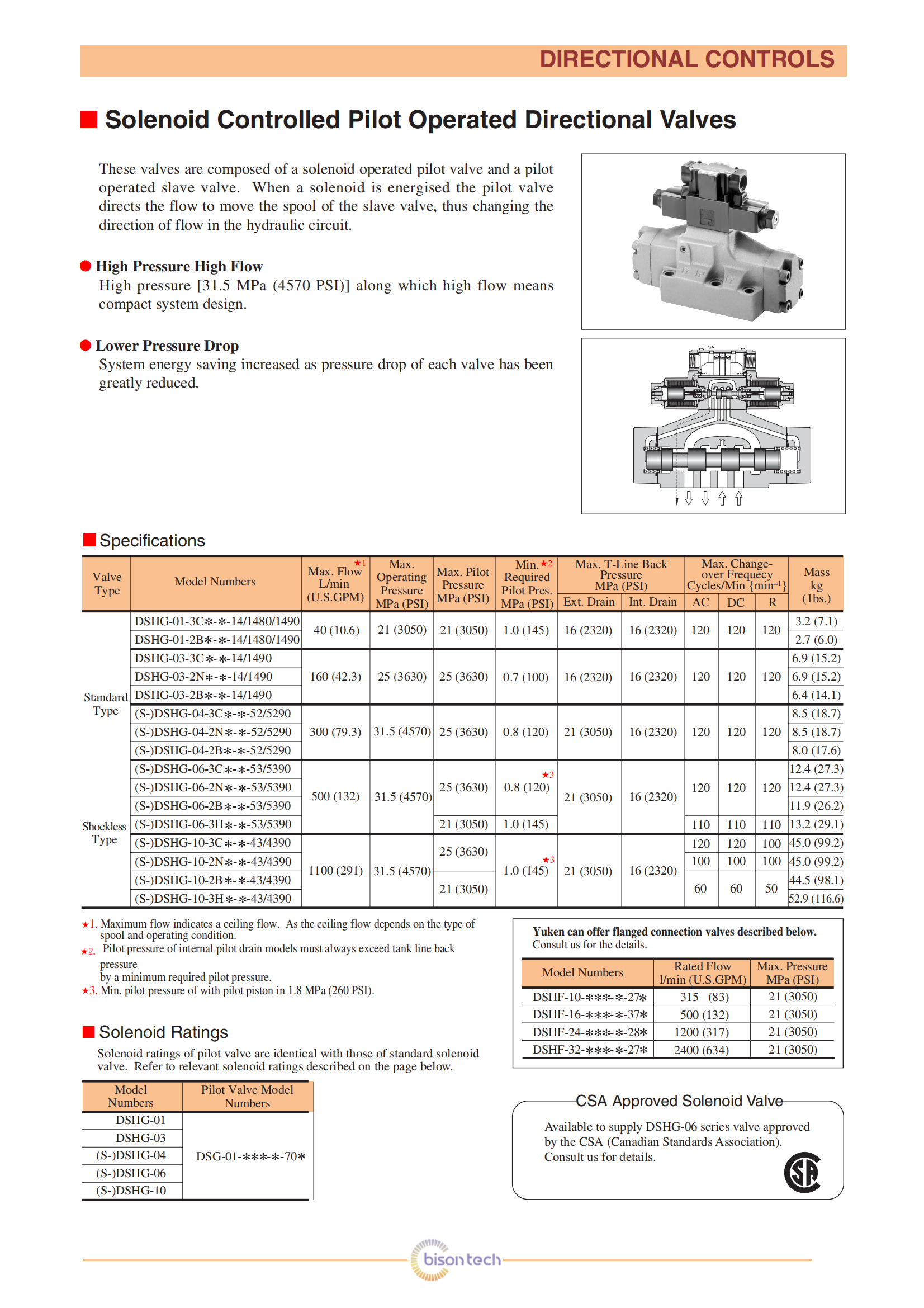

These valves are composed of a solenoid operated pilot valve and a pilot

operated slave valve. When a solenoid is energised the pilot valve

directs the flow to move the spool of the slave valve, thus changing the

direction of flow in the hydraulic circuit.

● High Pressure High Flow

High pressure [31.5 MPa (4570 PSI)] along which high flow means

compact system design.

● Lower Pressure Drop

System energy saving increased as pressure drop of each valve has been

greatly reduced.
